Groundline

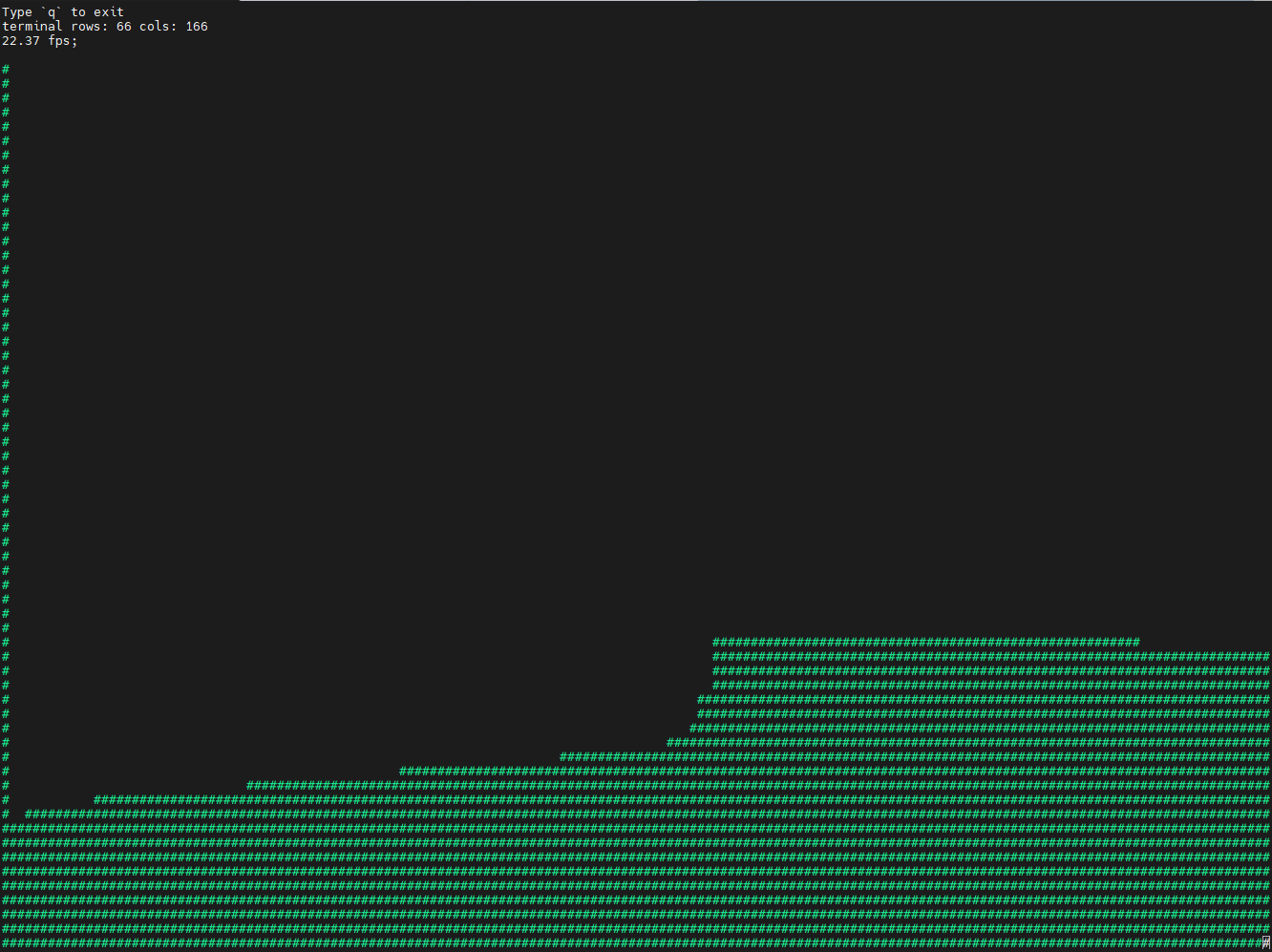

We employ computer vision to find the boundary between the ground and objects resting on the ground. When you run groundline_node, it fills its window with an image showing where the ground is located. A sample image is given below.

The groundline itself represents, for each x coordinate, the number of pixels of ground that are present. When an object is close to the robot, there will be very few pixels of ground present. When an object is far from the robot, there will be a larger number of pixels of ground present. The groundline_node publishes this list of pixel heights on the topic robot_groundline. (Substitute your robot’s name for robot; on frodo, for instance, the topic is frodo_groundline.)

Run groundline_node as follows, substituting your robot’s name for robot_name:

groundline_node robot_name

If, when you run the program, you see an error like this:

Error: Could not open device 0: V4L2 Error: Permission denied (os error 13)

Type this into the command prompt:

sudo chmod 666 /dev/video*

and enter your password when requested.

To get a feel for the groundline, do the following:

Finding floor regions

A floor region has the following characteristics:

Create a file floor_region.py and copy and paste the code below:

import unittest


class FloorRegion:
    def __init__(self, x_start: int, length: int):
        self.x_start = x_start
        self.length = length

    def __repr__(self):
        return f"FloorRegion({self.x_start}, {self.length})"

    def __eq__(self, other):
        return self.x_start == other.x_start and self.length == other.length

    def center(self):
        # YOUR CODE HERE


def find_regions(groundline: list[int], min_height: int, min_width: int) -> list[FloorRegion]:
    # YOUR CODE HERE


class FloorTest(unittest.TestCase):
    def test_region(self):
        line = [119, 9, 9, 9, 9, 10, 11, 12, 13, 13, 14, 14, 15, 15, 15, 15, 15, 15, 15, 15, 15, 15, 15, 15, 15, 15, 15, 15, 16, 16, 16, 16, 16, 16, 16, 16, 17, 17, 17, 17, 17, 17, 17, 17, 18, 18, 18, 18, 18, 18, 18, 18, 19, 19, 19, 19, 19, 19, 19, 19, 20, 20, 20, 20, 20, 20, 20, 20, 21, 21, 21, 21, 21, 21, 21, 21, 21, 22, 22, 22, 22, 22, 22, 22, 22, 23, 23, 23, 23, 23, 23, 23, 23, 23, 24, 24, 24, 24, 24, 24, 25, 25, 26, 26, 28, 30, 33, 42, 42, 42, 42, 42, 42, 42, 42, 41, 41, 41, 41, 41, 41, 41, 41, 41, 41, 41, 41, 41, 41, 41, 41, 41, 41, 41, 41, 41, 41, 41, 41, 41, 41, 41, 40, 40, 40, 40, 40, 40, 40, 40, 40, 40, 40, 40, 40, 40, 40, 40, 40, 119]
        regions = find_regions(line, 30, 16)
        self.assertEqual(regions, [FloorRegion(105, 54)])
        self.assertEqual(regions[0].center(), 132)


        line = [24, 25, 25, 26, 26, 28, 30, 33, 42, 42, 42, 42, 42, 42, 42, 42, 41, 41, 41, 41, 41, 12, 13, 13, 14, 14, 15, 42, 42, 42, 42,42, 42, 42, 42,42, 42, 42, 42,42, 42, 42, 42, 26, 28, 30, 33, 42, 42, 42, 42, 42, 42, 42, 42, 41,42, 42, 42, 42, 42, 42, 42, 42, 41]
        regions = find_regions(line, 30, 16)
        self.assertEqual(regions, [FloorRegion(27, 16), FloorRegion(45, 19)])
        self.assertEqual(regions[0].center(), 35)
        self.assertEqual(regions[1].center(), 54)


if __name__ == '__main__':
    unittest.main()

Groundline node

Create a new file groundline.py and copy and paste the code below into it:

import sys, curses, math
import rclpy
from rclpy.node import Node
from rclpy.qos import qos_profile_sensor_data
from geometry_msgs.msg import TwistStamped
from std_msgs.msg import String
from floor_region import FloorRegion, find_regions

SCREEN_WIDTH = 160
SCREEN_HEIGHT = 120
MIN_WIDTH = 16
MIN_HEIGHT = 30


class DriveNode(Node):
    def __init__(self, robot_name: str):
        super().__init__(f"{robot_name}_DriveNode")
        self.create_subscription(String, f"{robot_name}_groundline", self.groundline_callback, qos_profile_sensor_data)
        self.motors = self.create_publisher(TwistStamped, f"{robot_name}/cmd_vel_stamped", qos_profile_sensor_data)
        self.running = True
        self.paused = False

    def groundline_callback(self, groundline_str: String):
        t = TwistStamped()
        t.header.frame_id = "base_link"
        t.header.stamp = self.get_clock().now().to_msg()

        groundline = eval(groundline_str.data)
        regions = find_regions(groundline, MIN_HEIGHT, MIN_WIDTH)

        if not self.paused:
            # YOUR CODE HERE

        self.motors.publish(t)

    def process_keystroke(self, k: str):
        if k == 'q':
            self.running = False
        elif k == 'p':
            self.paused = not self.paused


def main(stdscr):
    rclpy.init()
    node = DriveNode(sys.argv[1])
    curses.cbreak()
    stdscr.nodelay(True)
    stdscr.clear()
    while node.running:
        try:
            k = stdscr.getch()
            if k != -1:
                k = chr(k)
                stdscr.addstr(2, 0, k)
                node.process_keystroke(k)
            stdscr.addstr(0, 0, f"STATE INFORMATION HERE")
            rclpy.spin_once(node, timeout_sec=0.0)
        except curses.error as e:
            if str(e) != 'no input':
                stdscr.addstr(0, 0, traceback.format_exc())

    rclpy.shutdown()
    node.destroy_node()
    curses.nocbreak()
    curses.echo()
    stdscr.refresh()


if __name__ == '__main__':
    if len(sys.argv) < 2:
        print("Usage: python3 groundline.py robot_name")
    else:
        curses.wrapper(main)

To Submit
